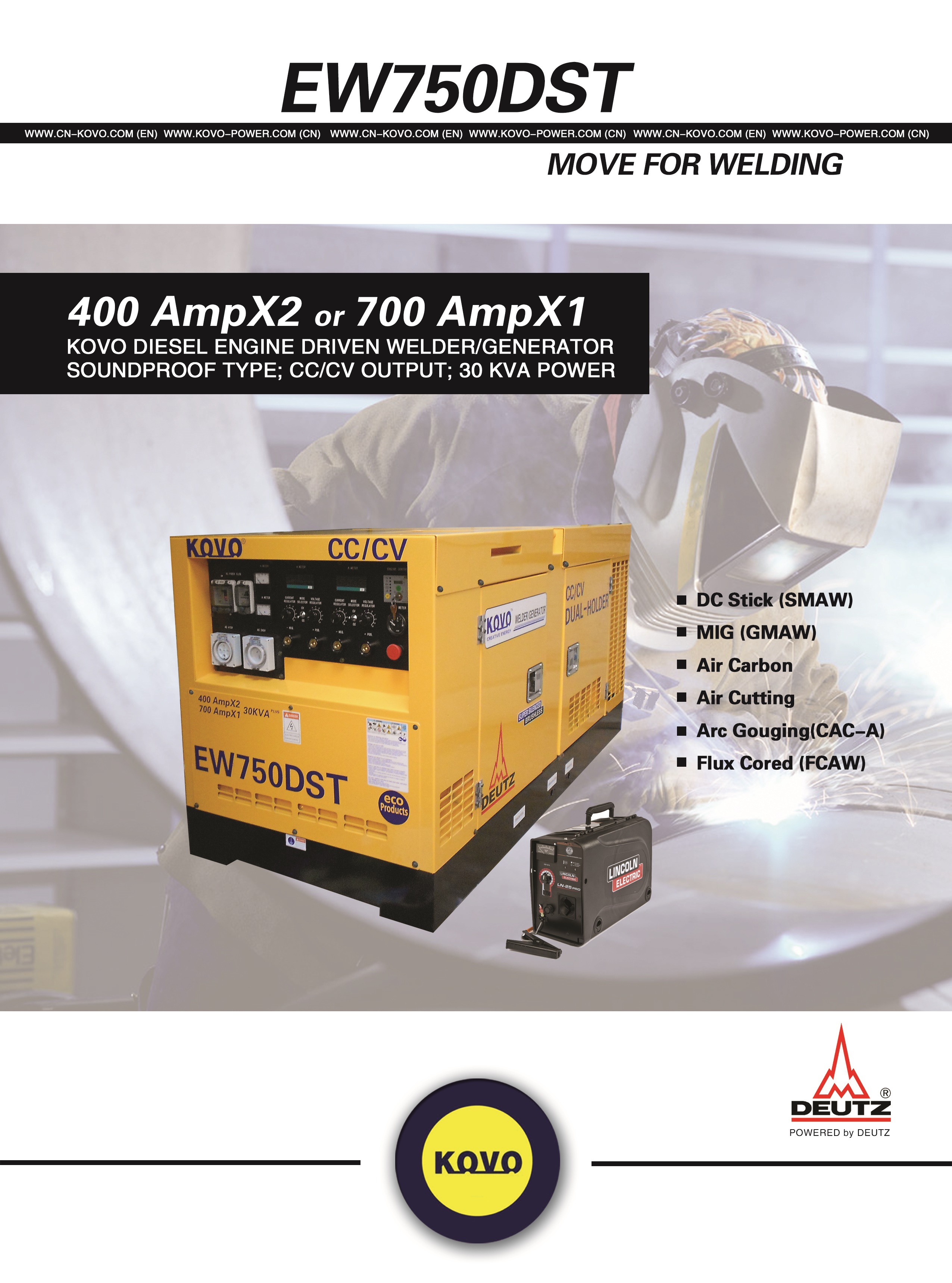

400Amp*2 or 700Amp*1;
LOW NOISE AND SOUND PROOF;
30KVA GENERATOR POWER
Features:
Versatile welding and cutting partner for heavy construction;
CC/CV with remote control function;
Low-maintenance, brushless welding alternator;
Auto shutdown protection system;
Direct coupling generating high-efficient power;
Detuz/Kubota for environment-friendly emissions;
Low noise with 1500rpm and KOVO P-noise solution;
Simultaneous use of welder and AC power (30KVA);
One-side service for simple maintenance and check;
Smooth and stable welding arc with range of electrode, such as cellulose-coating (E6010) or low-hydrogen
DC Stick (SMAW)
Air Carbon
Air Cutting
DC TIG (GTAW)
DC MIG (GMAW)
Flux cored (FCAW)

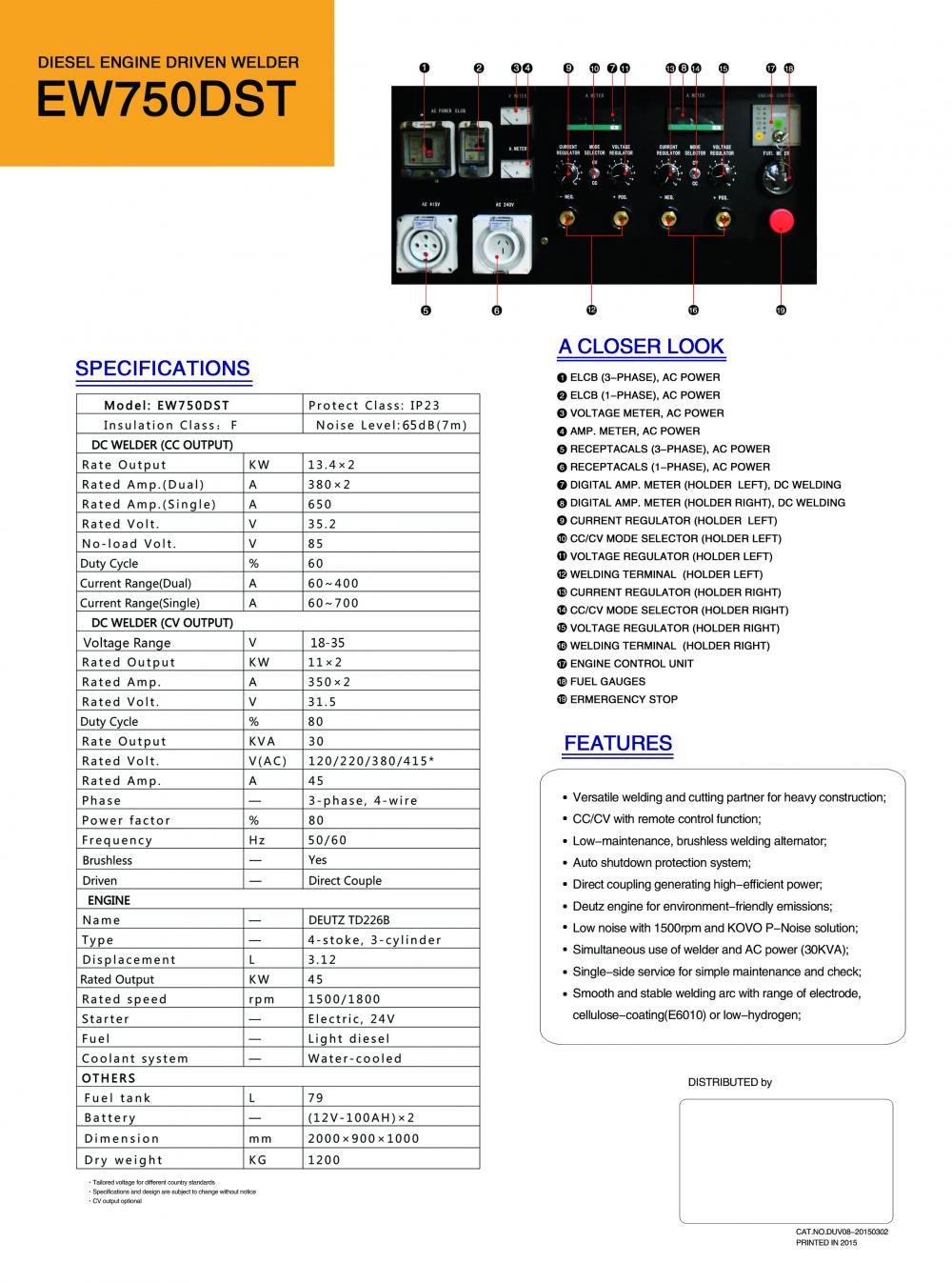

KOVO ENGINE DRIVEN WELDER EW750DST | ||
DC Welder | ||
Driven | - | Direct Coupling |
Rated Output | KW | 26.8 |
Rated Current | DCA | 700-CC |
DCA | 380*2-CC | |
DCA | 350A*2-CV* | |
Rated Voltage | DCV | 35.4 |
Current Range | DCA | 50-700 |
OCV | DCV | 80 |
Duty Cycle | % | 50 |
Type | - | Rectified DC output type |
Applicable Electrode | mm | 2.0-6.0 |
Aux. Power | ||
Rated Output | KVA | 30 |
Rated Voltage | V | AC110 /240/AC415 |
Phase | - | Three & Single |
Power Factor | % | 80 |
Rate | - | Continuous |
ENGINE | ||
Model | - | DEUTZ TD226B / KUBOTA V3300T |
Type | - | 4-cycle, water-cooled diesel engine |
Cylinder arrangement | - | 3-L |
Total displacement | cc | 3,120 |
Rated Output | KW | 45 |
Speed | rpm | 1,500 |
Fuel | Light diesel oil | |
Start System | - | Electric motor |
OTHER | ||
Fuel Tank Capacity | L | 79 |
Battery Capacity | - | (12V-100AH)*2 |
Dimension (L×W×H) | mm | 2000×900×1000 |
Net Dry Mass | Kg | 1200 |
Noise level (7m) | dB | 65 |
