PERMANENT MAGNET;
13HP FOR 240AMP WELDING & 3KW GENERATOR;
BRUSHLESS AND DIRECT COUPLING
Features:
13-14Hp branded s, Honda, Mitsubishi, and Kohler
DC welder and AC generator used simultaneously
No windings rotor and brushless stator
ECO running with auto-idle devices;
Strong arc force for easy burning electrode;
Polarity easy switched with DINSE type plug;
High OCV 75V
Robust engineering tube frame

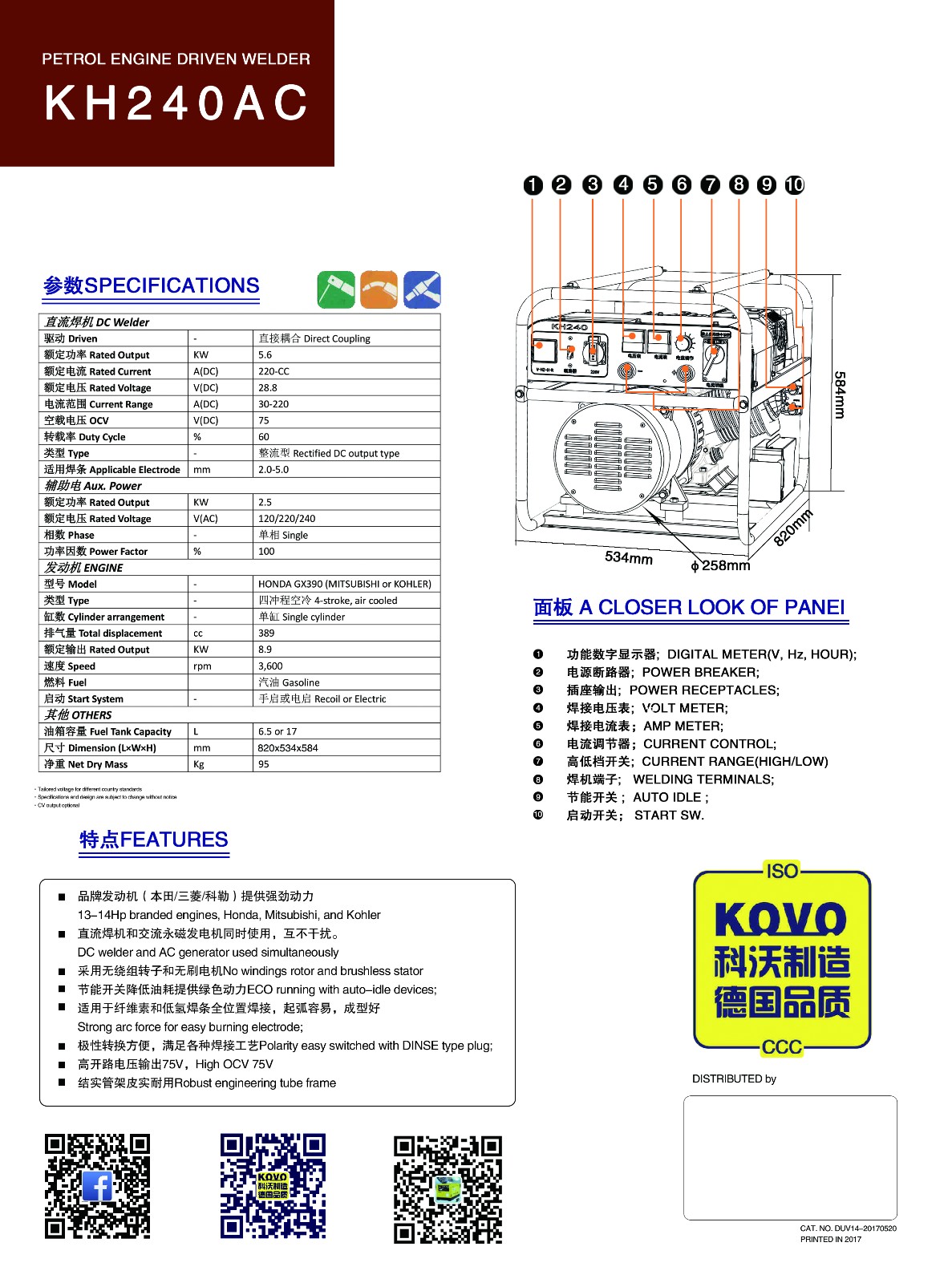

KOVO ENGINE DRIVEN WELDER KH240AC | ||
DC Welder | ||
Driven | - | Direct Coupling |
Rated Output | KW | 5.6 |
Rated Current | DCA | 220-CC |
Rated Voltage | DCV | 28.8 |
Current Range | DCA | 30-220 |
OCV | DCV | 75 |
Duty Cycle | % | 60 |
Type | - | Rectified DC output type |
Applicable Electrode | mm | 2.0-5.0 |
Aux. Power | ||
Rated Output | KW | 3 |
Rated Voltage | V (AC) | 120V/220V/240V |
Phase | - | Single |
Power Factor | % | 100 |
Rate | - | Continuous |
ENGINE | ||
Model | - | HONDA GX390 (MITSUBISHI or KOHLER) |
Type | - | 4-stroke, air cooled |
Cylinder arrangement | - | Single cylinder |
Total displacement | cc | 389 |
Rated Output | KW | 8.9 |
Speed | rpm | 3,000 |
Fuel | Gasoline | |
Start System | - | Recoil or Electric |
OTHER | ||
Fuel Tank Capacity | L | 6.5 or 17L |
Battery Capacity | - | 12V-26AH |
Dimension (L×W×H) | mm | 820×534×584 |
Net Dry Mass | Kg | 95 |
